JBL Cinema 300 and 500 Home Theater Speaker Systems

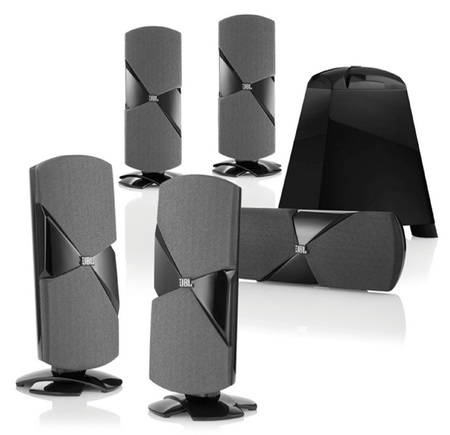

JBL Cinema 500 Home Theater Speaker System



JBL Cinema 500 Home Theater Speaker System

JBL Cinema 500



Harman’s JBL introduces the new Cinema 300 and Cinema 500 home theater speaker systems for movie watching at home. Both packages are complete 5.1-channel systems are are designed with signature JBL Weave aesthetic styling. Other than four 4 satellite speakers, the Cinema systems also have a center speaker, and a 150-watt powered subwoofer (model Sub 140P) with fast-moving 8-inch (200mm) woofer.

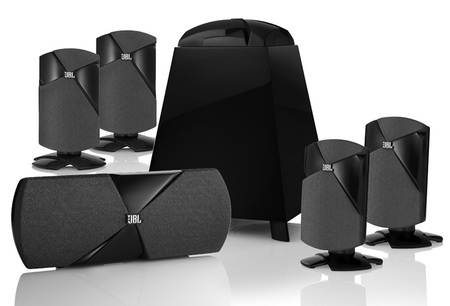

JBL Cinema 300 Home Theater Speaker System

JBL Cinema 300

The Cinema 300 and Cinema 500 both employ two PolyPlas cones in the center channel, but the latter features a lower crossover point in the surrounding satellite speakers with dual 3-inch (75mm) PolyPlas cones for even more movie-watching realism.

The JBL Cinema 300 is available for $499 and the Cinema 500 costs $699.



Cinema 300 System Technical Specifications:

Frequency Response: 32Hz – 20kHz (–6dB)

Cinema 300 Satellite Speakers:

  • Low-Frequency Transducer: 3″ (75mm) PolyPlas™ cone, video-shielded
  • High-Frequency Transducer: 1″ (25mm) titanium-laminate dome, video-shielded
  • Recommended Amplifier
  • Power: 100 watts
  • Nominal Impedance: 8 ohms
  • Sensitivity (2.83V/1m): 86dB
  • Crossover Frequency: 3.7kHz
  • Enclosure Type: Sealed
  • Connector Type: Push-spring terminal
  • Dimensions – including stands: (H x W x D): 9-1/4″ x 4-3/4″ x 3-3/8″ (235mm x 121mm x 86mm)

Cinema 300 Center Speaker:

  • Low-Frequency Transducers: Dual 3″ (75mm) PolyPlas cones, video-shielded
  • High-Frequency Transducer: 1″ (25mm) titanium-laminate dome, video-shielded
  • Recommended Power Handling: 100 watts
  • Nominal Impedance: 8 ohms
  • Sensitivity (2.83V/1m): 89dB
  • Crossover Frequency: 3.7kHz
  • Enclosure Type: Sealed
  • Connector Type: Push-spring terminal
  • Dimensions – including stands: (H x W x D): 4-7/8″ x 12″ x 3-3/8″ (124mm x 305mm x 86mm)

Sub 140P Subwoofer:

  • Low-Frequency Transducer: 8″ down-firing cone
  • Enclosure Type: Ported (down-firing)
  • Amplifier Power: 150 watts
  • Frequency Response: 32Hz – 150Hz
  • Crossover Frequency: 50Hz – 200Hz (variable)
  • Controls: Volume, crossover frequency, phase
  • Connections: Left and right RCA line-level inputs, LFE inputs
  • Power Requirement: 120V/60Hz, 150W (US); 220V/50Hz, 150W (EU)
  • Power Consumption: <1W (8mA@120V) standby; 300W (2.5A@120V) peak
  • Dimensions (W x H x D): 49″ x 14″ x 14″ (475mm x 355mm x 355mm)

Cinema 500 System Technical Specifications:

Frequency Response: 32Hz – 20kHz (–6dB)

Cinema 500 Satellite Speakers:

  • Low-Frequency Transducers: Dual 3″ (75mm) PolyPlas™ cones, video-shielded
  • High-Frequency Transducer: 1″ (25mm) titanium-laminate dome, video-shielded
  • Recommended Amplifier
  • Power Handling: 100 watts
  • Nominal Impedance: 8 ohms
  • Sensitivity (2.83V/1m): 89dB
  • Crossover Frequency: 3.7kHz
  • Enclosure Type: Sealed
  • Connector Type: Push-spring terminal
  • Dimensions – including stands: (H x W x D): 11-3/8″ x 4-3/4″ x 3-3/8″ (289mm x 121mm x 86mm)

Cinema 500 Center Speaker:

  • Low-Frequency Transducers: Dual 3″ (75mm) PolyPlas™ cones, video-shielded
  • High-Frequency Transducer: 1″ (25mm) titanium-laminate dome, video-shielded
  • Recommended Power Handling: 100 watts
  • Nominal Impedance: 8 ohms
  • Sensitivity (2.83V/1m): 89dB
  • Crossover Frequency: 3.7kHz
  • Enclosure Type: Sealed
  • Connector Type: Push-spring terminal
  • Dimensions – including stand: (H x W x D): 4-7/8″ x 12″ x 3-3/8″ (124mm x 305mm x 86mm)

Sub 140P Subwoofer:

  • Low-Frequency Transducers: 8″ down-firing cone
  • Enclosure Type: Ported (down-firing)
  • Amplifier Power: 150 watts
  • Frequency Response: 32Hz – 150Hz (–6dB)
  • Crossover Frequency: 50Hz – 200Hz (variable)
  • Controls: Volume, crossover frequency, phase
  • Connections: Left and right RCA line-level inputs, LFE input
  • Power Requirement: 120V/60Hz, 150W (US); 220V/60Hz, 150W (EU)
  • Power Consumption: <1W (8mA@120V) standby; 300W (2.5A@120V) peak
  • Dimensions (W x H x D): 19″ x 14″ x 14″ (475mm x 355mm x 355mm)

[Businesswire][JBL 1|2]
